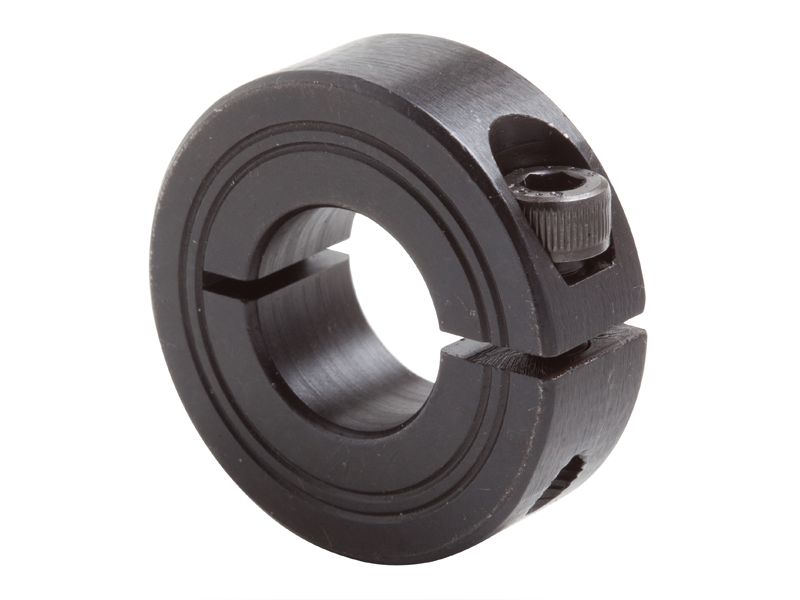

Metric One-Piece Clamping Collar GM1C-Series

Design fully engages the shaft without marring. Provides greater axial holding power than set screw collars. Effective on both hard and soft shafts.

Request Information

View Catalog Page

Metric One-Piece Clamping Collar GM1C-Series

Item #	Bore	OD	Width	Screw Size	Material	Finish
GM1C-03-B	3 mm	16 mm	9 mm	M3 x 8	Steel, ASTM A108	Black Oxide
GM1C-03-SS	3 mm	16 mm	9 mm	M3 x 8	Stainless Steel, ASTM A582	Plain
GM1C-04-B	4 mm	16 mm	9 mm	M3 x 8	Steel, ASTM A108	Black Oxide
GM1C-04-SS	4 mm	16 mm	9 mm	M3 x 8	Stainless Steel, ASTM A582	Plain
GM1C-05-B	5 mm	16 mm	9 mm	M3 x 8	Steel, ASTM A108	Black Oxide
GM1C-05-SS	5 mm	16 mm	9 mm	M3 x 8	Stainless Steel, ASTM A582	Plain
GM1C-06-B	6 mm	16 mm	9 mm	M3 x 8	Steel, ASTM A108	Black Oxide
GM1C-06-SS	6 mm	16 mm	9 mm	M3 x 8	Stainless Steel, ASTM A582	Plain
GM1C-08-B	8 mm	18 mm	9 mm	M3 x 10	Steel, ASTM A108	Black Oxide
GM1C-08-SS	8 mm	18 mm	9 mm	M3 x 10	Stainless Steel, ASTM A582	Plain
GM1C-09-B	9 mm	24 mm	9 mm	M3 x 10	Steel, ASTM A108	Black Oxide
GM1C-09-SS	9 mm	24 mm	9 mm	M3 x 10	Stainless Steel, ASTM A582	Plain
GM1C-10-B	10 mm	24 mm	9 mm	M3 x 10	Steel, ASTM A108	Black Oxide
GM1C-10-SS	10 mm	24 mm	9 mm	M3 x 10	Stainless Steel, ASTM A582	Plain
GM1C-12-B	12 mm	28 mm	11 mm	M4 x 12	Steel, ASTM A108	Black Oxide
GM1C-12-SS	12 mm	28 mm	11 mm	M4 x 12	Stainless Steel, ASTM A582	Plain
GM1C-13-B	13 mm	30 mm	11 mm	M4 x 12	Steel, ASTM A108	Black Oxide
GM1C-13-SS	13 mm	30 mm	11 mm	M4 x 12	Stainless Steel, ASTM A582	Plain
GM1C-14-B	14 mm	30 mm	11 mm	M4 x 12	Steel, ASTM A108	Black Oxide
GM1C-14-SS	14 mm	30 mm	11 mm	M4 x 12	Stainless Steel, ASTM A582	Plain
GM1C-15-B	15 mm	34 mm	13 mm	M5 x 16	Steel, ASTM A108	Black Oxide
GM1C-15-SS	15 mm	34 mm	13 mm	M5 x 16	Stainless Steel, ASTM A582	Plain
GM1C-16-B	16 mm	34 mm	13 mm	M5 x 16	Steel, ASTM A108	Black Oxide
GM1C-16-SS	16 mm	34 mm	13 mm	M5 x 16	Stainless Steel, ASTM A582	Plain
GM1C-17-B	17 mm	36 mm	13 mm	M5 x 16	Steel, ASTM A108	Black Oxide
GM1C-17-SS	17 mm	36 mm	13 mm	M5 x 16	Stainless Steel, ASTM A582	Plain
GM1C-18-B	18 mm	36 mm	13 mm	M5 x 16	Steel, ASTM A108	Black Oxide
GM1C-18-SS	18 mm	36 mm	13 mm	M5 x 16	Stainless Steel, ASTM A582	Plain
GM1C-20-B	20 mm	40 mm	15 mm	M6 x 16	Steel, ASTM A108	Black Oxide
GM1C-20-SS	20 mm	40 mm	15 mm	M6 x 16	Stainless Steel, ASTM A582	Plain
GM1C-25-B	25 mm	45 mm	15 mm	M6 x 16	Steel, ASTM A108	Black Oxide
GM1C-25-SS	25 mm	45 mm	15 mm	M6 x 16	Stainless Steel, ASTM A582	Plain
GM1C-30-B	30 mm	54 mm	15 mm	M6 x 16	Steel, ASTM A108	Black Oxide
GM1C-30-SS	30 mm	54 mm	15 mm	M6 x 16	Stainless Steel, ASTM A582	Plain
GM1C-35-B	35 mm	57 mm	15 mm	M6 x 16	Steel, ASTM A108	Black Oxide
GM1C-35-SS	35 mm	57 mm	15 mm	M6 x 16	Stainless Steel, ASTM A582	Plain
GM1C-40-B	40 mm	60 mm	15 mm	M6 x 16	Steel, ASTM A108	Black Oxide
GM1C-40-SS	40 mm	60 mm	15 mm	M6 x 16	Stainless Steel, ASTM A582	Plain
GM1C-45-B	45 mm	73 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-45-SS	45 mm	73 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-50-B	50 mm	78 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-50-SS	50 mm	78 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-55-B	55 mm	82 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-55-SS	55 mm	82 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-60-B	60 mm	88 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-60-SS	60 mm	88 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-65-B	65 mm	93 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-65-SS	65 mm	93 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-70-B	70 mm	98 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-70-SS	70 mm	98 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-75-B	75 mm	103 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-75-SS	75 mm	103 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
GM1C-80-B	80 mm	108 mm	19 mm	M8 x 25	Steel, ASTM A108	Black Oxide
GM1C-80-SS	80 mm	108 mm	19 mm	M8 x 25	Stainless Steel, ASTM A582	Plain
