Pillow Block Bearings
Pillow Block Bearings are available with housing units made from die-cast zinc, pressed steel and pressed stainless steel. Die-cast zinc housings are non-corrosive, lightweight, and are available with either a bronze bearing or ball bearing insert. Pressed steel housings, plated with a rust proof finish, are available with either a bronze bearing or ball bearing insert. Stainless steel housings are USDA/FDA approved, have UHMW-PE bearing inserts and are ideal for wash-down applications in wet or harsh environments. Solid UHMW-PE Bearings are made completely from UHMW-PE are USDA/FDA approved and are self-lubricating.
Browse by Product Category
Ball Bearing, Die-Cast Housing, Rigid Type PBDC-BL - Series
Ideal for applications requiring strong load support in limited mounting areas Solid zinc die cast housing is non-corrosive & lightweight Housing retains bearing securely by pressing the lip 360° over the outer race Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants out allowing for us...

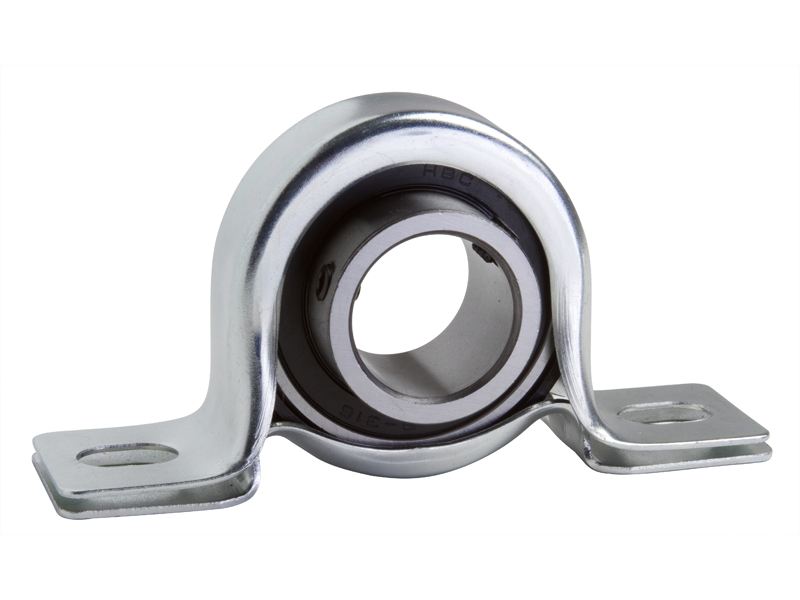

Ball Bearing, Pressed Steel Housing, Self-Aligning, Standard Type PBPS-BL - Series
Two-piece steel housing has a rust-proof plated finish Bearing inserts are encased in non-conductive, oil resistant rubber liner which corrects up to a 2° misalignment while reducing vibration & noise Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants out allowing for usage in wet or d...

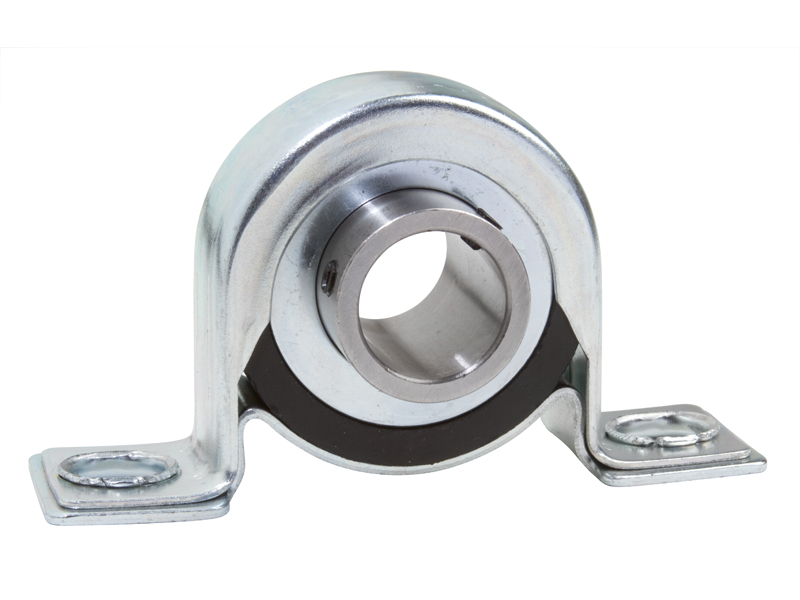

Ball Bearing, Pressed Steel Housing, Self-Aligning, Heavy Gauge Type PBPH-BL - Series
Heavy gauge pressed steel two-piece housing is crimped together at the bolt holes & has a rust-proof plated finish Bearing inserts are encased in an extra thick, non-conductive oil resistant rubber liner which corrects up to a 2° misalignment while reducing vibration & noise Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two...

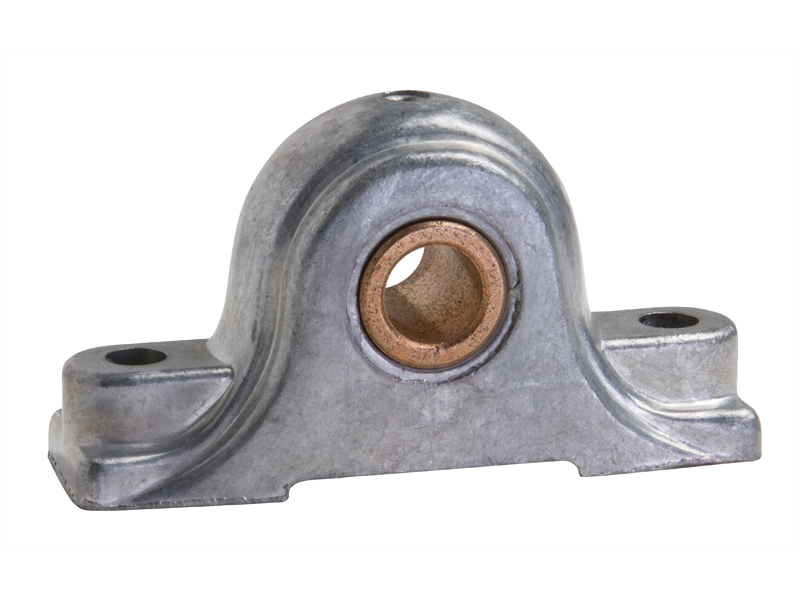

Bronze Bearing, Die-Cast Housing, Rigid Type PBDC-BR - Series
Zinc die-cast housing is non-corrosive & lightweight Porous bronze sleeve bearings are press-fit in the solid zinc die-cast housing with an oil hole for lubrication Sleeve bearings do not have moving parts & assure a low friction, smooth motion between two solid surfaces Operating Temperature Range: -5° F to 220° F

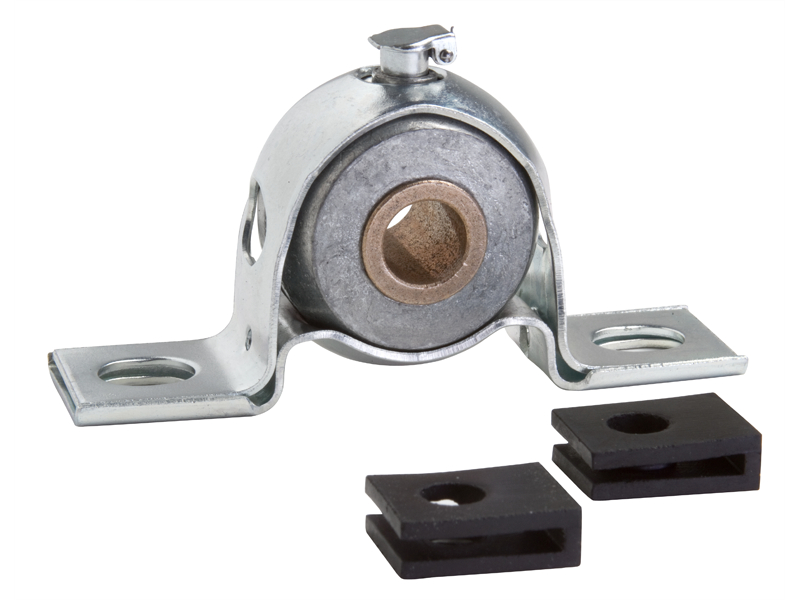

Bronze Bearing, Pressed Steel Housing, Self-Aligning, Standard Type PBPS-BR - Series
Two-piece pressed steel housing has a rust-proof plated finish Bearing design allows for a vertical or horizontal mount as the spring lid oil cap can be positioned 4 different ways Porous flanged bronze bearing is press-fit in the sturdy zinc die-cast sphere with a felt strip for lubrication Bearing units include two replaceable rubber grommets that reduce noise & vibration Operating Temperatu...

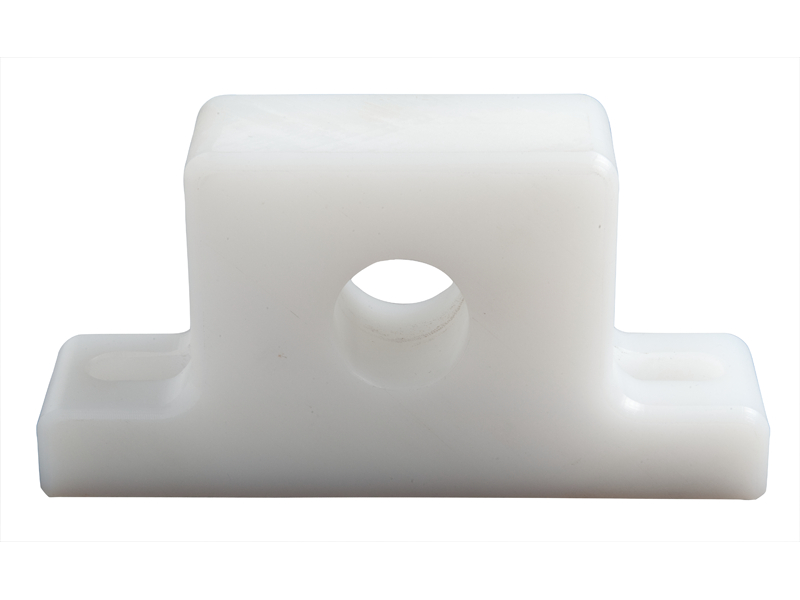

UHMW-PE Bearing, Solid-Rigid Type PBUH-UH - Series
Ideal for wash down applications in wet or harsh environments or where sanitary conditions are a factor Entire bearing unit is UHMW-PE UHMW-PE Bearings are USDA & FDA approved Self-lubricating bearings resist corrosion, high impact & abrasion UHMW-PE units are interchangeable with most metal units Operating Temperature Range: -60° F to 180° F

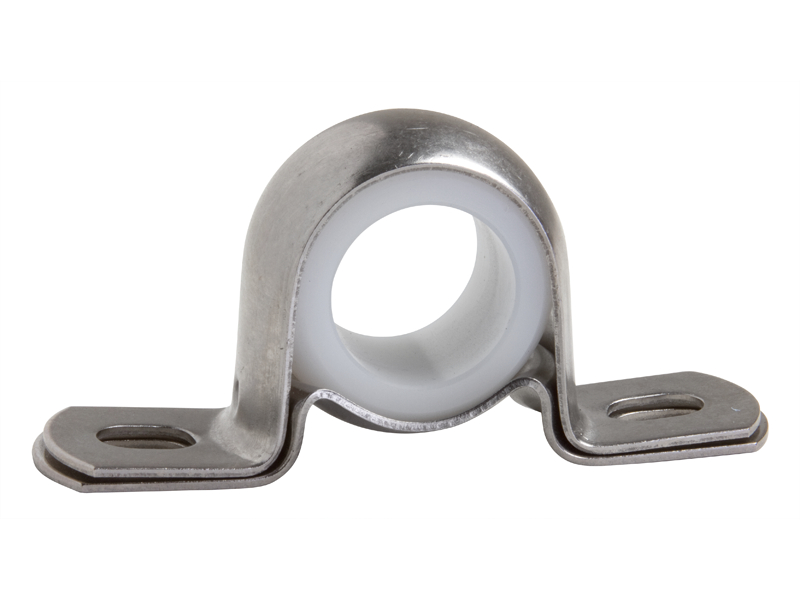

UHMW-PE Bearing, Pressed Stainless Steel Housing, Self-Aligning Type PBSS-UH - Series
Ideal for wash down applications in wet or harsh environments or where sanitary conditions are a factor Two-piece stainless steel housing PBSS-UH Series bearings are USDA & FDA approved UHMW-PE bearings are self-lubricating, resist corrosion, high impact & abrasion Operating Temperature Range: -60° F to 180° F
