C192M-22X45

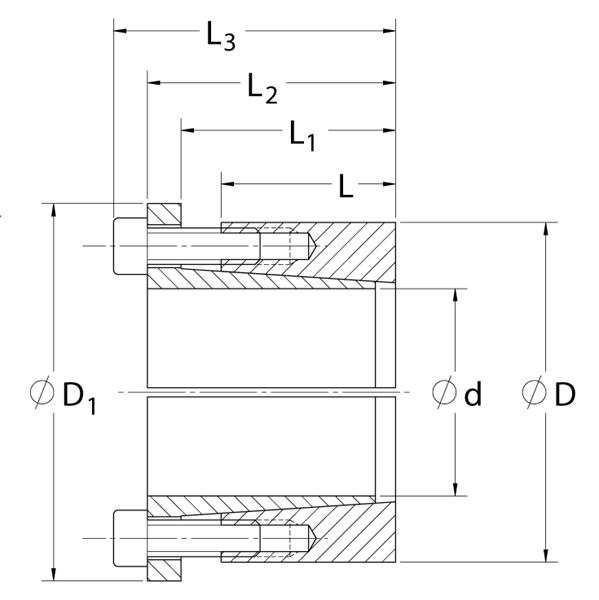

Series C192M Locking Assembly 22mm ID x 45mm OD, Steel
Drop-in replacement for commonly used hex nut keyless bushings. Mounted component remains fixed axially during installation.
Shaft Size
22 mm
d
0.866 in
D
1.772 in
D1
1.969 in
L
0.677 in
L1
0.875 in
L2
1.110 in
L3
1.346 in
Mt
2,965 in-lbs
Fax
6,839 lbs.F
Ps
19,172 psi
Ph
9373 psi
DN1
2.189 in
Locking Screws Quantity
5
Locking Screws Size
M6 x 20
Ma-Locking Screws
150 in-lbs
Hub Machining Tolerance
±.003 in
Shaft Machining Tolerance
±.003 in
Weight
0.44 lb
UPC Code
044861060209
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi. For details see Hub Strength in Technical Information.
