C193E-037

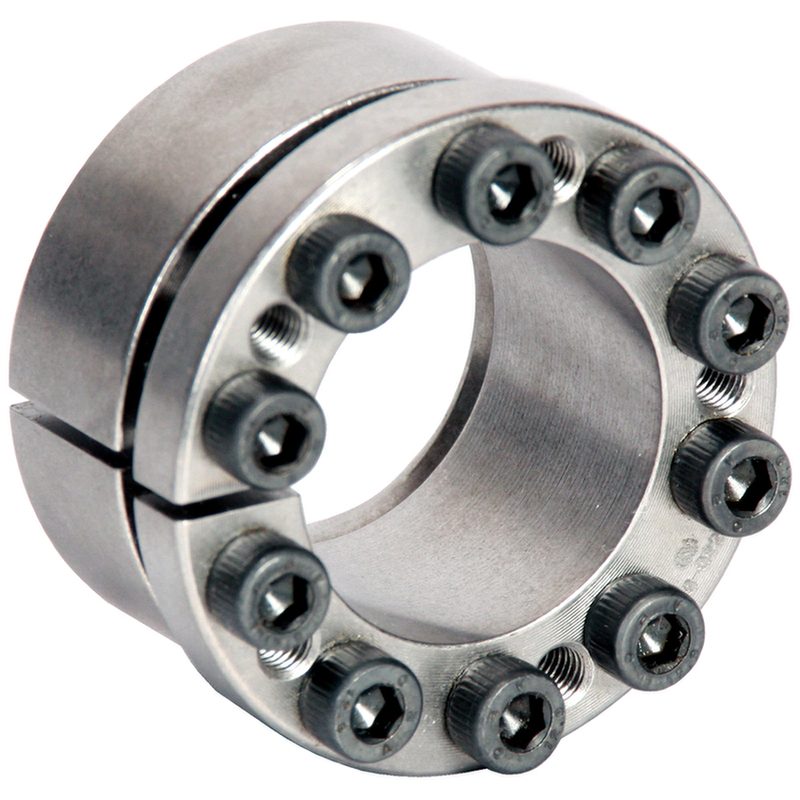

Series C193E Locking Assembly 0.375" ID x 0.938" OD, Steel
Single-taper, self-centering design with mounting flange for use in through-bored components. Mounted component remains fixed axially during installation.
Shaft Size

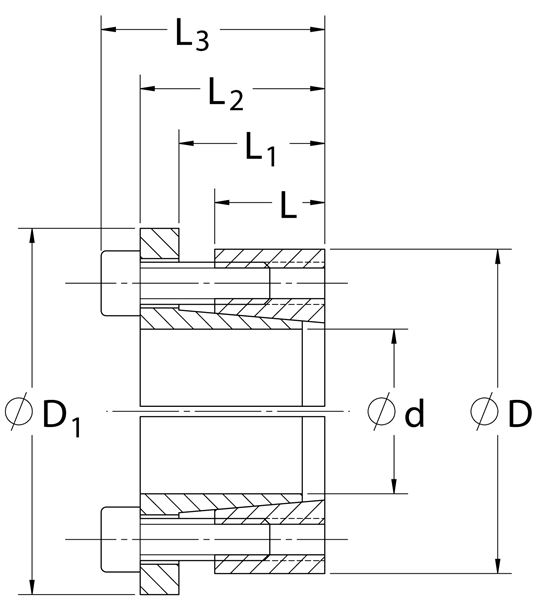

3/8 in
d
0.375 in
D
0.938 in
D1
1.063 in
L
0.394 in
L1
0.516 in
L2
0.650 in0.65 in
L3
0.807 in
Mt
308 in-lbs
Fax
1,643 lbs.F
Ps
29,496 psi
Ph
11,799 psi
DN1
1.226 in
Locking Screws Quantity
3
Locking Screws Size
M4 x 12
Ma-Locking Screws
44 in-lbs
Hub Machining Tolerance
0.001 in
Shaft Machining Tolerance
-0.001 in
Weight
0.10 lb
UPC Code
044861046562
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi. For details see Hub Strength in Technical Information.
