C193M-22
Series C193M Locking Assembly 22mm ID x 1.563" OD, Steel

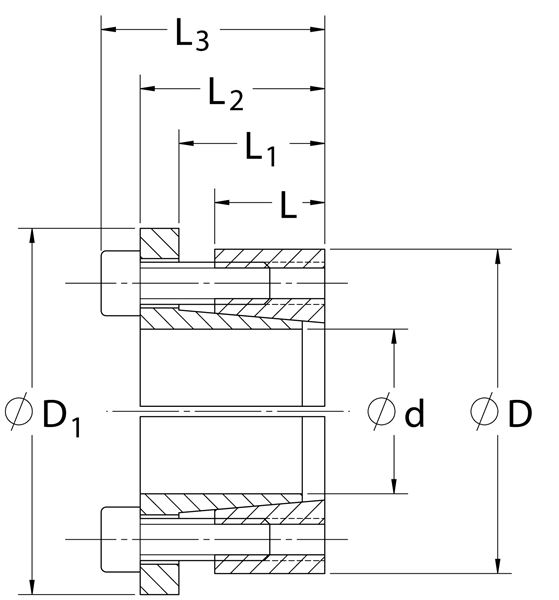

Single-taper, self-centering design with mounting flange for use in through-bored components. Mounted component remains fixed axially during installation.
Shaft Size
22 mm
d
0.866 in
D
1.563 in
D1
1 3/4 in
L
0.591 in
L1
0.754 in
L2
0.984 in
L3
1.181 in
Mt
2,285 in-lbs
Fax
5,277 lbs.F
Ps
27,347 psi
Ph
15159 psi
DN1
2.219 in
Locking Screws Quantity
6
Locking Screws Size
M5 x 18
Ma-Locking Screws
89 in-lbs
Hub Machining Tolerance
0.001 in
Shaft Machining Tolerance
-0.001 in
Weight
0.40 lb
UPC Code
044861046777
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi. For details see Hub Strength in Technical Information.
