C415E-293

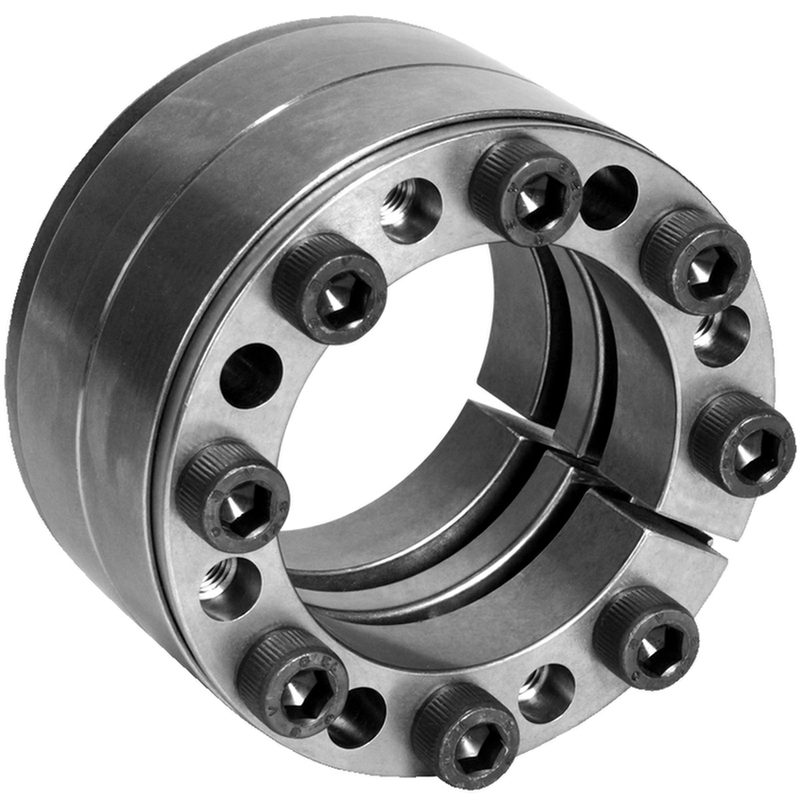

Series C415E Locking Assembly 2.938" ID x 4.528" OD, Steel
Wide, medium taper, self-centering design for use in through-bored components with high torque and/or bending requirements. Mounted component remains fixed axially during installation.
Shaft Size
2 15/16 in

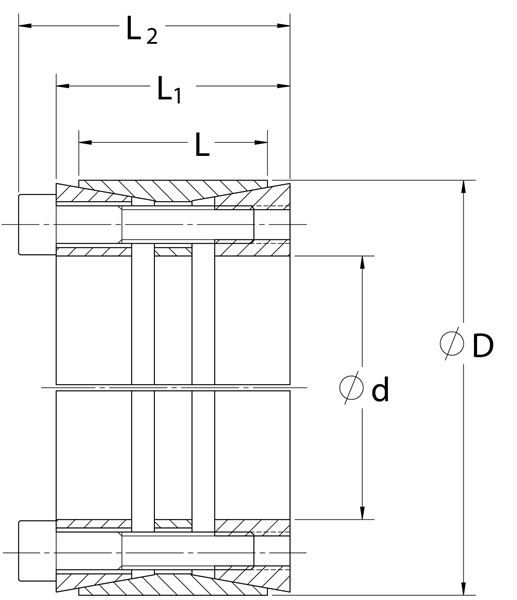

d
2.938 in
D
4.528 in
L
1.969 in
L1
2.441 in
L2
2.835 in
Mt
5,729 ft-lbs
Fax
46,804 lbs.F
Ps
26838 psi
Ph
17413 psi
DN1
6.81 in
Locking Screws Quantity
8
Locking Screws Size
M10 x 50
Ma-Locking Screws
61 ft-lbs
Hub Machining Tolerance
0.002 in
Shaft Machining Tolerance
-0.002 in
Weight
5.40 lb
UPC Code
044861047132
