C415M-280×355
Series C415M Locking Assembly 280mm ID x 355mm OD, Steel

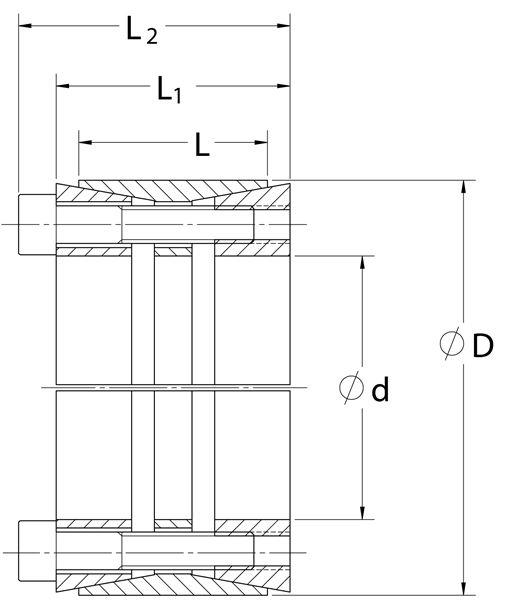

Wide, medium taper, self-centering design for use in through-bored components with high torque and/or bending requirements. Mounted component remains fixed axially during installation.
Shaft Size
280 mm
d
11.024 in
D
13.976 in
L
3.780 in
L1
4.331 in
L2
5.118 in
Mt
173,380 ft-lbs
Fax
377,473 lbs.F
Ps
31177 psi
Ph
24590 psi
DN1
25.808 in
Locking Screws Quantity
15
Locking Screws Size
M20 x 90
Ma-Locking Screws
509 ft-lbs
Hub Machining Tolerance
0.004 in
Shaft Machining Tolerance
-0.003 in
Weight
61 lb
UPC Code
044861047491
