C425M-400×535

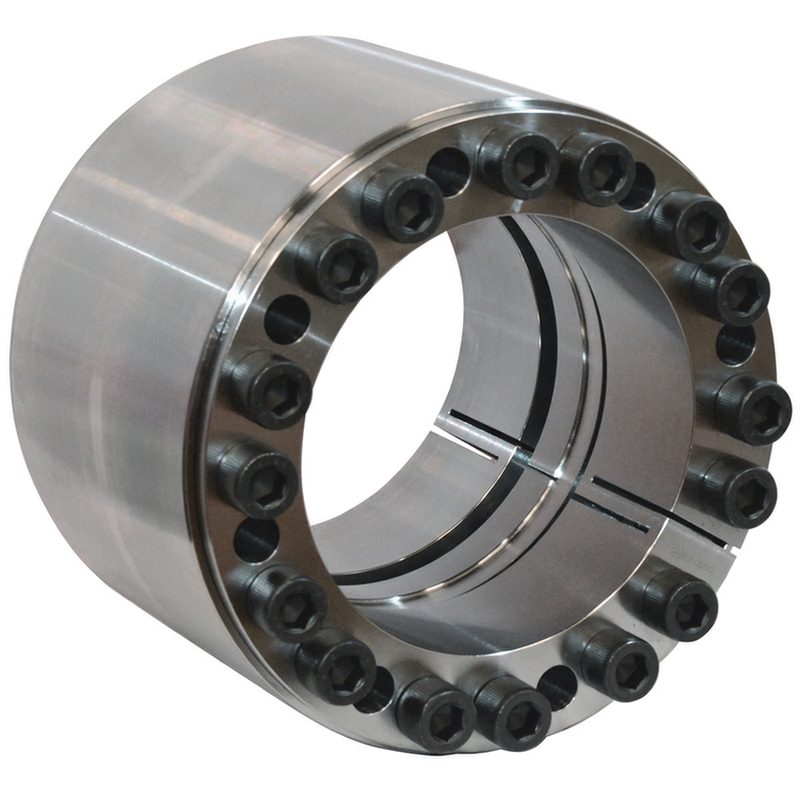

Series C425M Locking Assembly 400mm ID x 535mm OD, Steel
Extra wide, shallow taper, self-centering design for use in through-bored components with highest torque and/or bending requirements. Mounted component remains fixed axially during installation.
Shaft Size
400 mm

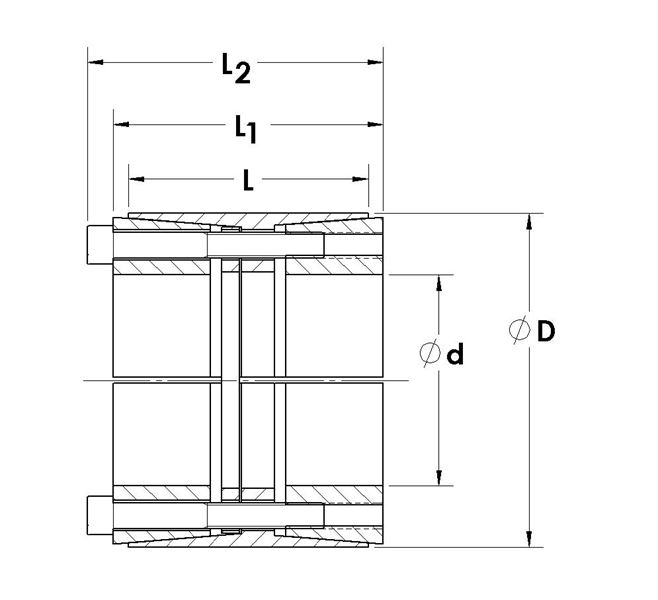

d
15.748 in
D
21.063 in
L
9.843 in
L1
11.024 in
L2
12.087 in
Mt
909,338 ft-lbs
Fax
1,385,830 lbs.F
Ps
29588 psi
Ph
22191 psi
DN1
36.151 in
Locking Screws Quantity
22
Locking Screws Size
M27 x 220
Ma-Locking Screws
1328 ft-lbs
Hub Machining Tolerance
0.004 in
Shaft Machining Tolerance
-0.004 in
Weight
407 lb
UPC Code
044861047897
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi. For details see Hub Strength in Technical Information.
