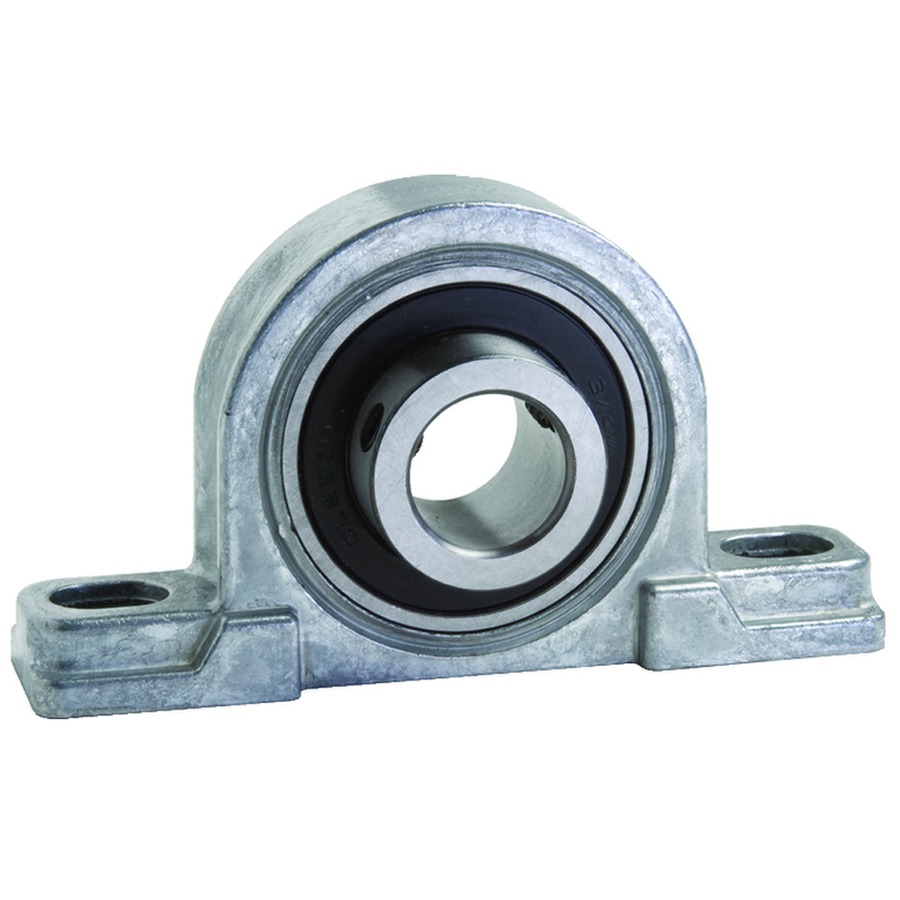

PBDC-BL-050
Pillow Block Bearing Die Cast Housing Ball Bearing 1/2" ID
- Ideal for applications requiring strong load support in limited mounting areas
- Solid zinc die cast housing is non-corrosive & lightweight
- Housing retains bearing securely by pressing the lip 360° over the outer race
- Ball bearing is pre-lubricated & made to ABEC-1 tolerances
- Wide inner race locks securely to the shaft with two set screws
- Neoprene seal keeps contaminants out allowing for usage in wet or dry conditions
- Operating Temperature Range: -30° F to 200° F
Bore Size
1/2 in
Bore Tolerance
+0.0005 / +0.001 in
Bearing Style
Pillow Block
Bearing Type
Ball
Shaft Locking Method
(2) Set Screws
Housing Material
Die Cast Zinc
Insert Material
SAE 52100
Seal Material
Buna-N
Lubricant
Chevron SRI #2, 35% fill
Tolerance Class
ABEC-1
Maximum Speed Based on Light Load
6000 RPM
Static Load Capacity
2877 lb
Dynamic Load Capacity
1479 lb
Mounting Bolts Required
2
Ambient Operating Temperature Range
-30 to 200 ºF
Approximate Weight
0.90 lb

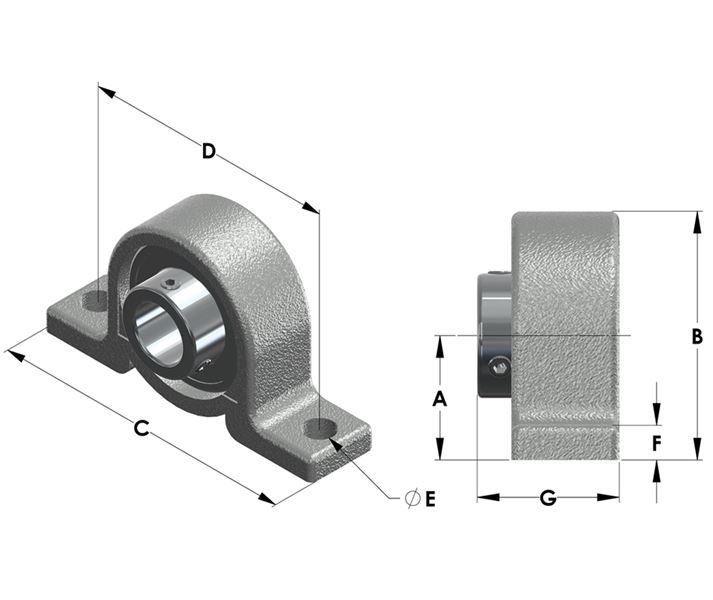

A - Mounting Surface to Shaft Center
1 1/8 in
B - Overall Height
2 5/16 in
C - Overall Length
4 1/4 in
D - Bolt Hole Center-to-Center
3 3/8 in
E - Mounting Bolt Hole Size
3/8 in
F - Feet Height
7/16 in
G - Overall Width
1 5/16 in
UPC Code
044861012901
