Flange Mount Bearings
Flange Mount Bearings are available with housing units made from die-cast zinc, pressed steel and pressed stainless steel. Die-cast zinc housings are non-corrosive and lightweight with either a bronze bearing or ball bearing insert. Pressed steel housings come plated with a rust-proof finish and are available with bronze bearing or ball bearing inserts. Stainless steel housings are USDA/FDA approved and have UHMW-PE bearing inserts and are ideal for wash-down applications in wet or harsh environments. Solid UHMW-PE Bearings are made completely from UHMW-PE and are USDA/FDA approved and are self-lubricating.
Browse by Product Category

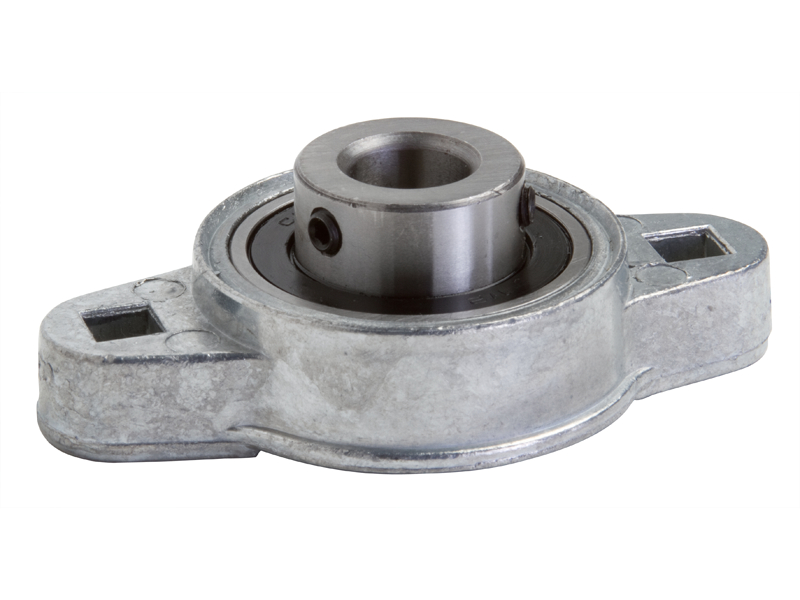

Ball Bearing, Die-Cast Housing, Rigid Type (2 Bolt) F2DC-BL - Series
Ideal for applications requiring strong load support in limited mounting areas Solid zinc die cast housing is non-corrosive & lightweight Housing retains bearing securely by pressing the lip 360° over the outer race Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants out allowing for us...

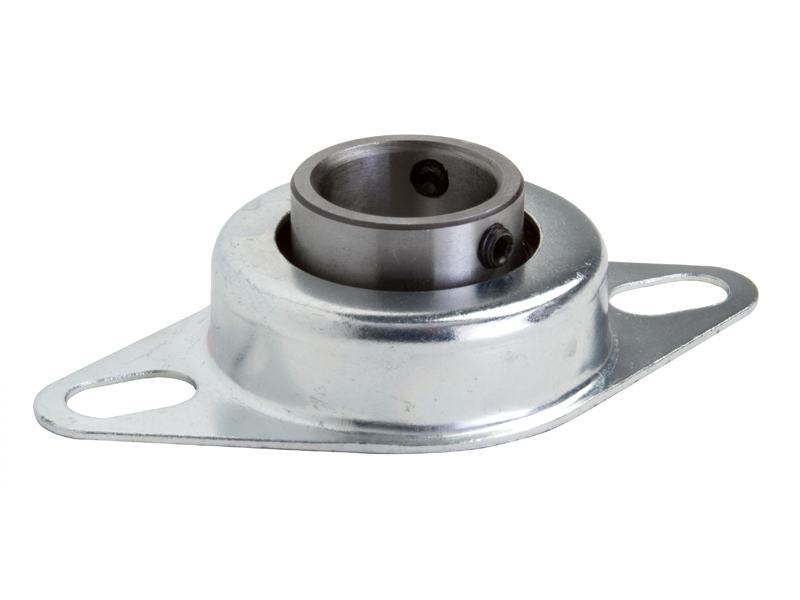

Ball Bearing, Pressed Steel Housing, Self-Aligning, Standard Type F2PS-BL Series
One-piece steel housing has a rust-proof plated finish Bearing inserts are encased in non-conductive, oil resistant rubber liner which corrects up to a 2° misalignment while reducing vibration & noise Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants out allowing for usage in wet or d...

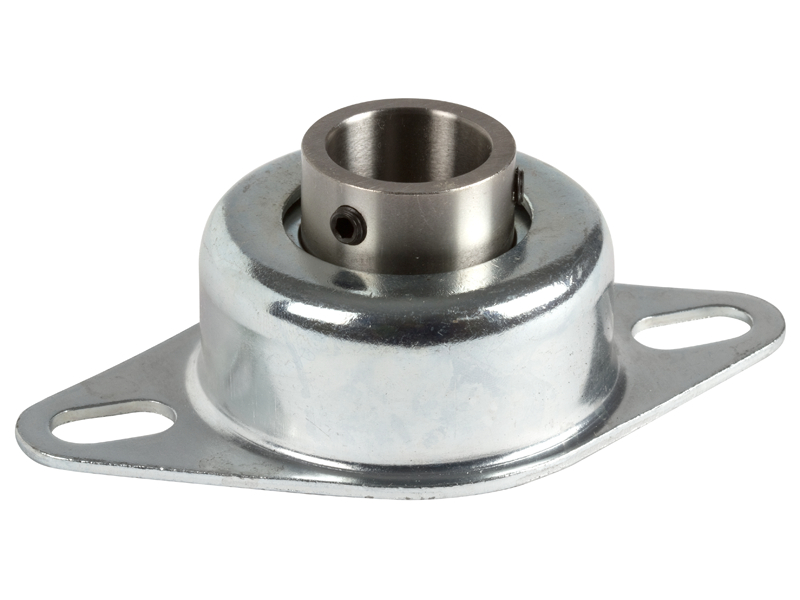

Ball Bearing, Pressed Steel Housing, Self-Aligning, Heavy Gauge Type F2PH-BL - Series
Heavy gauge pressed steel one-piece housing has a rust-proof plated finish Bearing inserts are encased in an extra thick, non-conductive oil resistant rubber liner which corrects up to a 2° misalignment while reducing vibration & noise Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants...

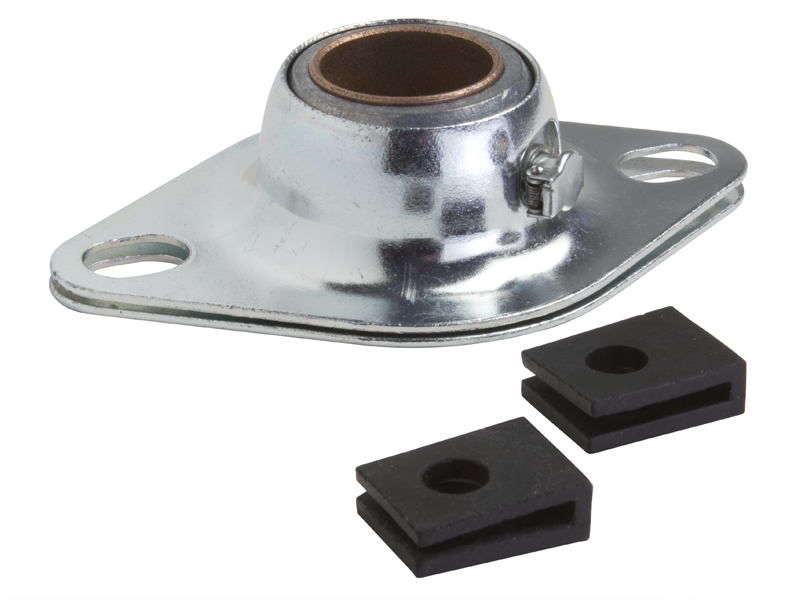

Bronze Bearing, Pressed Steel Housing, Self-Aligning Type F2PS-BR - Series

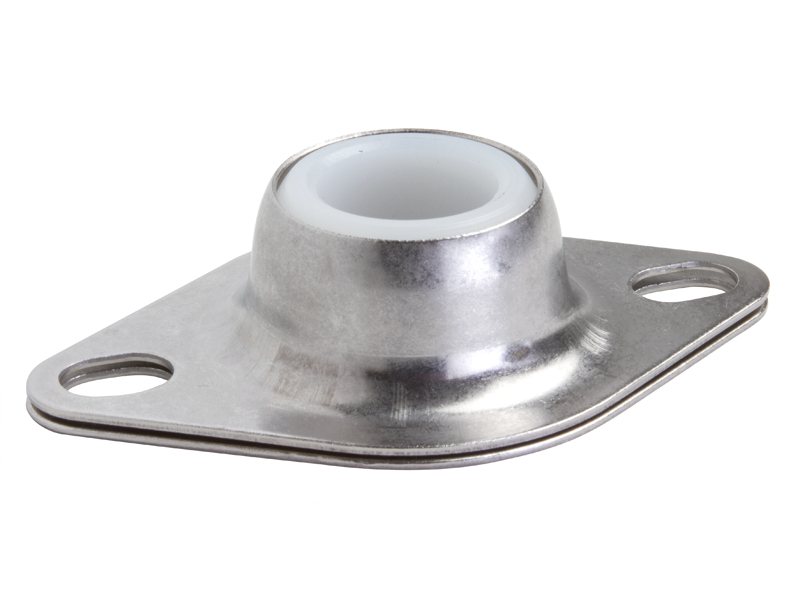

UHMW-PE Bearing, Pressed Stainless Steel Housing, Self-Aligning Type F2SS-UH - Series
Ideal for wash down applications in wet or harsh environments or where sanitary conditions are a factor Two-piece stainless steel housing F2SS-UH Series bearings are USDA & FDA approved UHMW-PE bearings are self-lubricating, resist corrosion, high impact & abrasion Operating Temperature Range: -60° F to 180° F

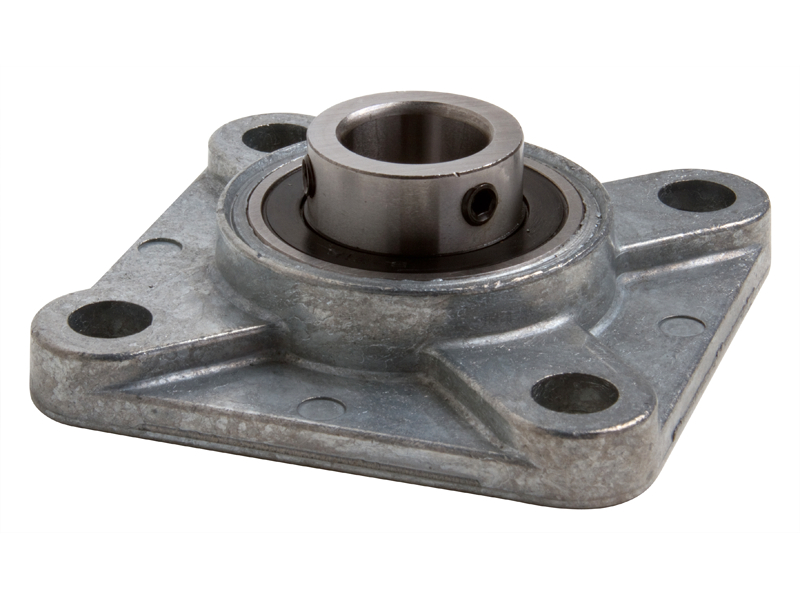

Ball Bearing, Die-Cast Housing, Rigid Type (4 Bolt) F4DC-BL - Series
Ideal for applications requiring strong load support in limited mounting areas Solid zinc die-cast housing is non-corrosive & lightweight Housing retains bearing securely by pressing the lip 360° over the outer race Ball bearing is pre-lubricated & made to ABEC-1 tolerances Wide inner race locks securely to the shaft with two set screws Neoprene seal keeps contaminants out allowing for us...

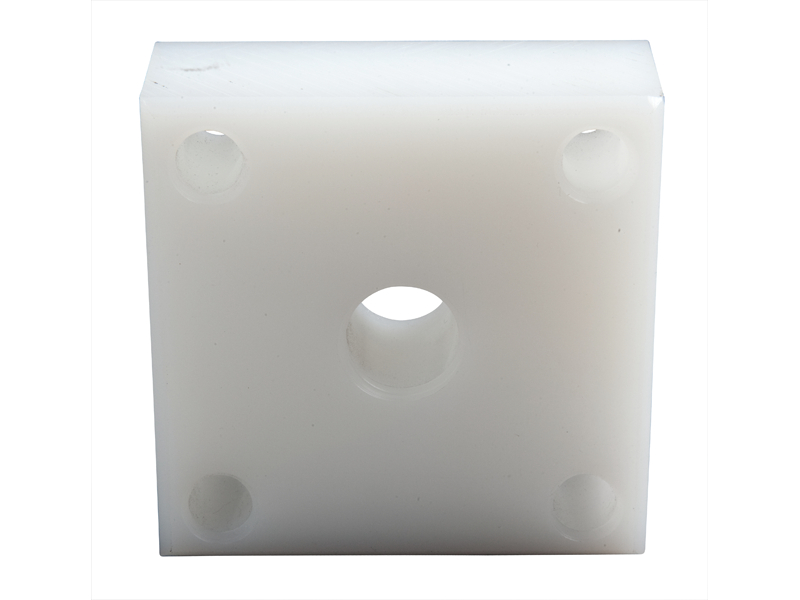

UHMW-PE Bearing, Solid-Rigid Type (4 Bolt) F4UH-UH Series
Ideal for wash down applications in wet or harsh environments or where sanitary conditions are a factor Entire bearing unit is UHMW-PE UHMW-PE Bearings are USDA & FDA approved Self-lubricating bearings resist corrosion, high impact & abrasion UHMW-PE units are interchangeable with most metal units Operating Temperature Range: -60° F to 180° F

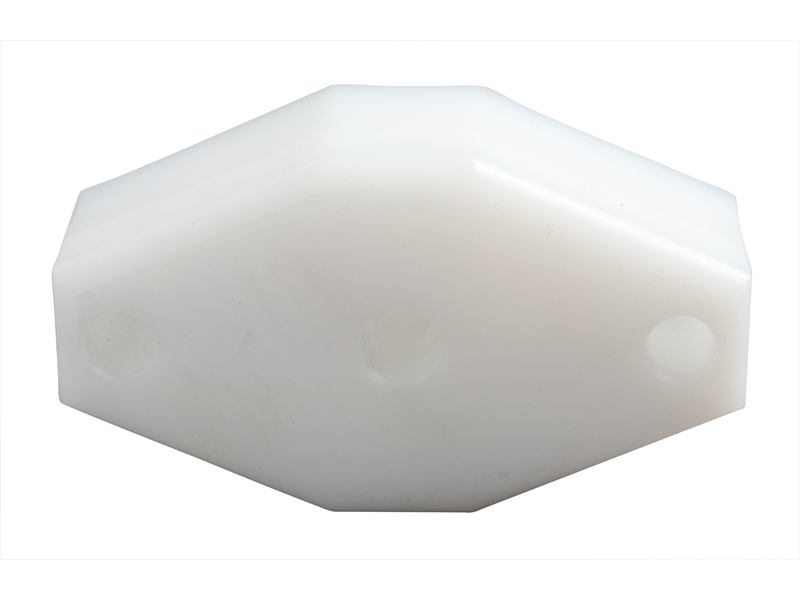

UHMW-PE Bearing, Solid-Rigid Type (2 Bolt) F2UH-UH - Series
Ideal for wash down applications in wet or harsh environments or where sanitary conditions are a factor Entire bearing unit is UHMW-PE UHMW-PE Bearings are USDA & FDA approved Self-lubricating bearings resist corrosion, high impact & abrasion UHMW-PE units are interchangeable with most metal units Operating Temperature Range: -60° F to 180° F
