C133M-140×190
Series C133M Locking Assembly 140mm ID x 190mm OD, Steel

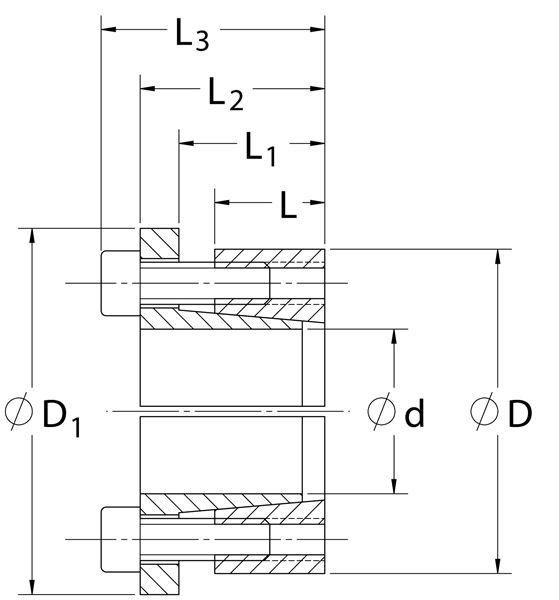

Single-taper, self-centering design with mounting flange for use in through-bored components. Mounted component remains fixed axially during installation.
Shaft Size
140 mm
d
5.512 in
D
7.480 in
D1
7.835 in
L
1.339 in
L1
1.614 in
L2
2.165 in
L3
2.717 in
Mt
15,779 ft-lbs
Fax
68,706 lbs.F
Ps
24,701 psi
Ph
18201 psi
DN1
11.487 in
Locking Screws Quantity
9
Locking Screws Size
M14 x 40
Ma-Locking Screws
170 ft-lbs
Hub Machining Tolerance
0.003 in
Shaft Machining Tolerance
-0.003 in
Weight
12 lb
UPC Code
044861004845
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi for carbon steel and a tensile yield point = 30,000 psi for stainless steel. For details see Hub Strength in Technical Information.
