C170M-13×23
Series C170M Locking Assembly 13mm ID x 23mm OD, Steel
Single-taper, self-centering design with mounting flange for use in through-bored components with smaller pitch/outside diameters. Mounted component remains fixed axially during installation.

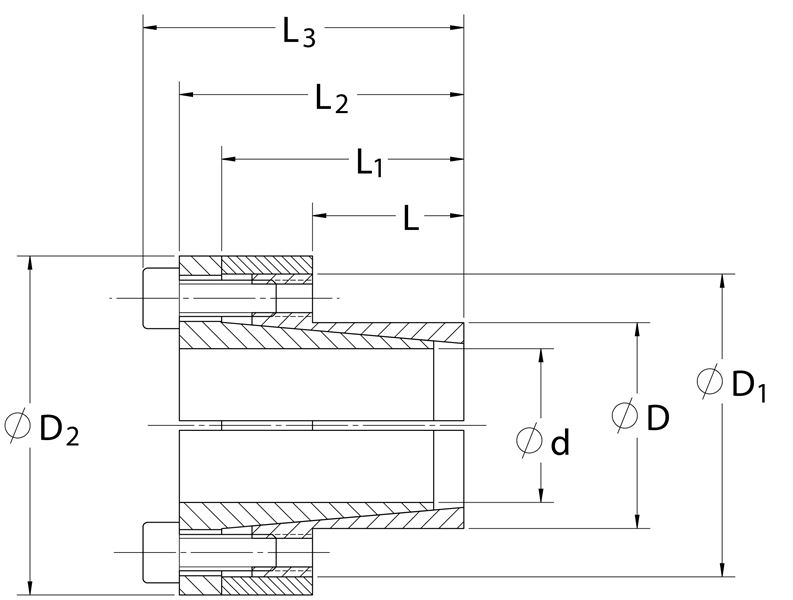

Shaft Size
13 mm
d
0.512 in
D
0.906 in
D1
1.299 in
D2
1.496 in
L
0.551 in
L1
0.945 in
L2
1.083 in
L3
1.240 in
Mt
47 ft-lbs
Fax
2,191 lbs.F
Ps
20598 psi
Ph
11643 psi
DN1
1.18 in
Locking Screws Quantity
4
Locking Screws Size
M4 x 10
Ma-Locking Screws
3.7 ft-lbs
Hub Machining Tolerance
0.002 in
Shaft Machining Tolerance
-0.002 in
Weight
0.20 lb
UPC Code
044861077894
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Minimum hub outside diameter based on a Pressure reduction Factor of C=1.0 and hub material with tensile yield point = 45,000 psi. For details see Hub Strength in Technical Information.
