R1C-156

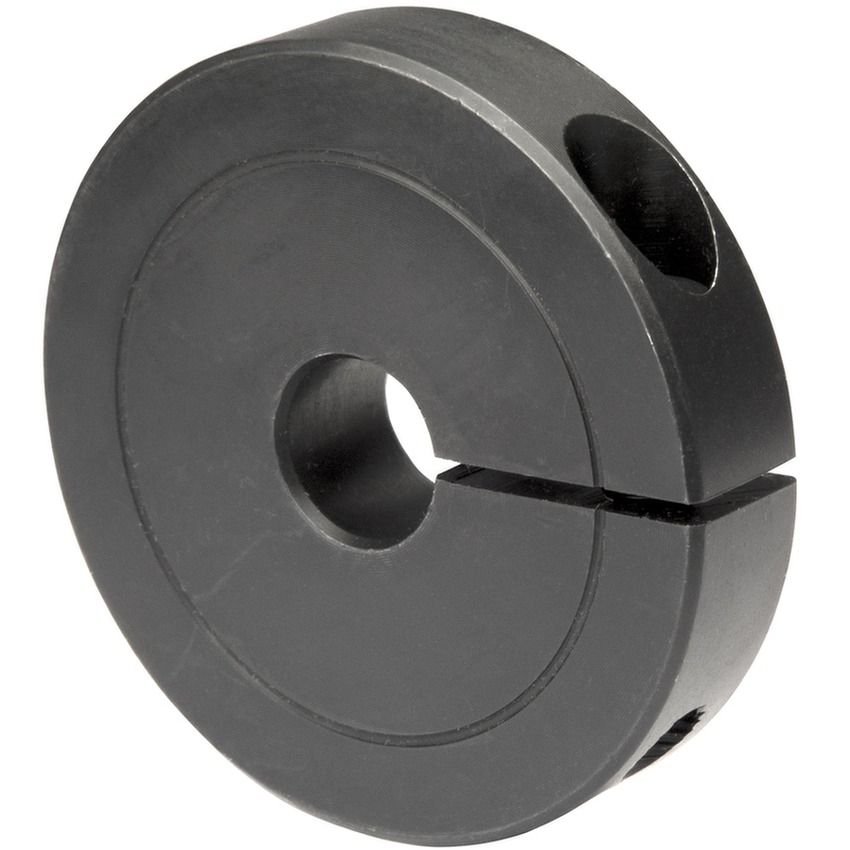

Re-Machinable One-Piece Clamping Shaft Collar 5/8" Pilot Bore x 1-9/16" Max Bore" x 2-1/2" OD x 1/2" W, Steel, Black Oxide
Re-Machinable One-Piece Clamping Collars are offered with an undersized bore allowing the customer the necessary clearance to re-machine the bore without damaging the existing clamp screws. The pilot bore can be safely enlarged to the nominal bore size reflected in the part number nomenclature.
Bore
5/8 in
Max Bore
1 9/16 in
OD
2 1/2 in
Width
1/2 in
Style
One-Piece Clamp
Material
Steel, ASTM A108
Finish
Black Oxide
Clamp Screw
Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 1/4-28 x 3/4
Recessed Screw
No
UPC Code
044861655030
Approximate Weight
11.20 oz
