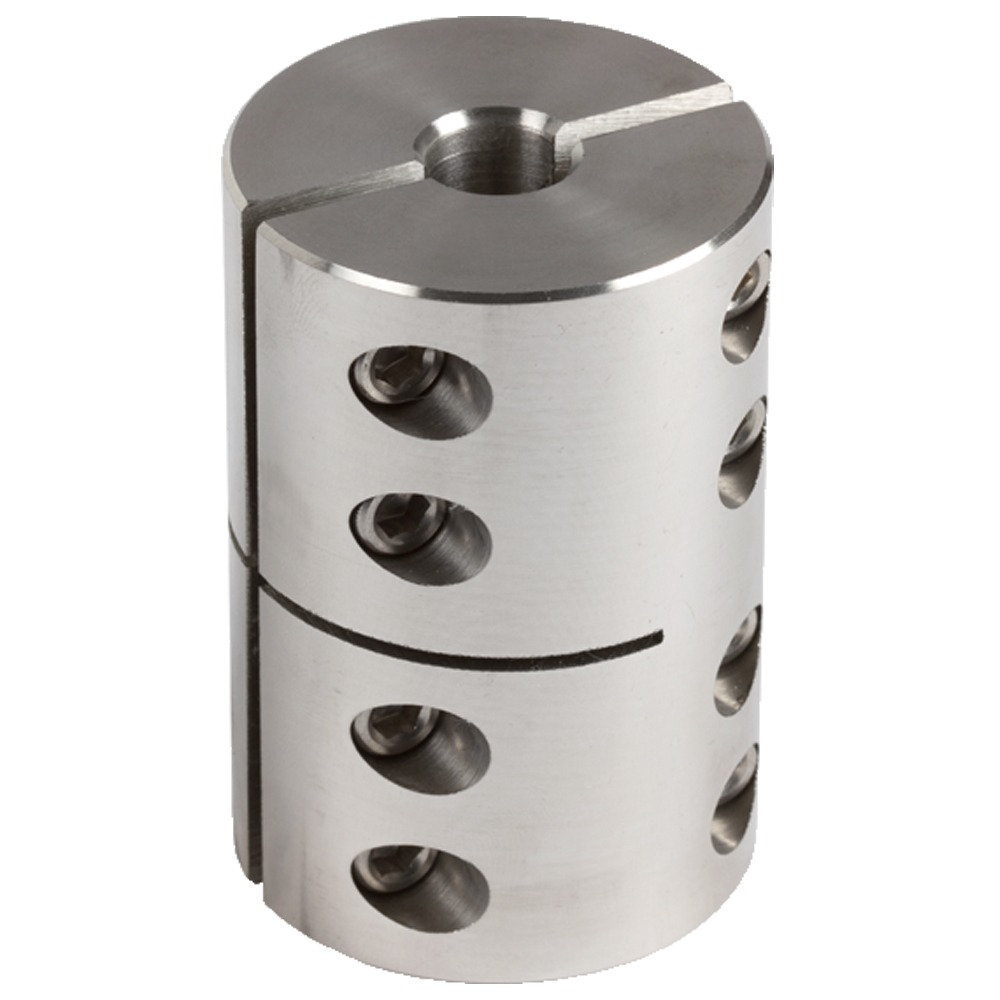

R2CC-075-075-S

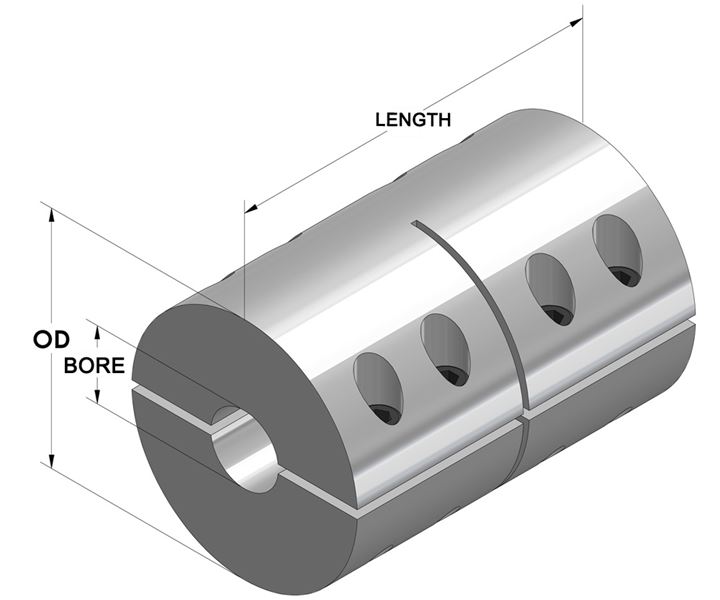

Re-Machinable Two-Piece Clamping Coupling 1/4" Pilot Bore x 3/4" Max Bore x 1-3/4" OD x 2-5/8" OAL, Stainless Steel
Stainless Steel Re-Machinable Coupling. These unique two-piece rigid clamping couplings come with an undersized ID. Allows you room to re-bore the ID without damaging the clamp screws. Pilot bore can be opened to the nominal ID reflected in the part number.
Pilot Bore
1/4 in
Max Bore
3/4 in
OD
1 3/4 in
Length
2 5/8 in
Style
Two-Piece Clamp
Material
Stainless Steel, ASTM A582
Finish
Plain
Clamp Screw
Hex Socket Cap Screw, 3A Thread, Stainless Steel, ASTMF837: 1/4-28 x 5/8
Approximate Weight
27.50 oz
UPC Code
044861470091
