R2CC-100-100

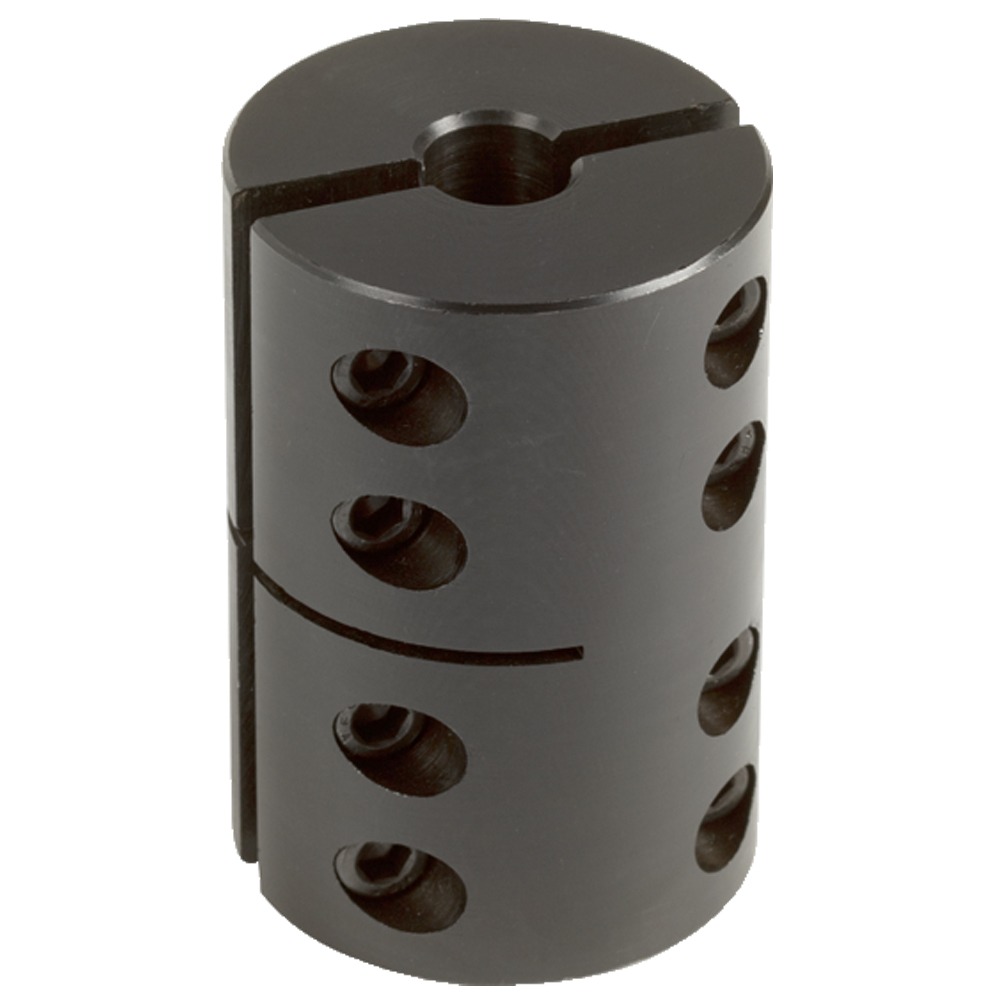

Re-Machinable Two-Piece Clamping Coupling 1/2" Pilot Bore x 1" Max Bore x 2" OD x 3" OAL, Steel, Black Oxide
Black Oxide Plated Steel Re-Machinable Coupling. These unique two-piece rigid clamping couplings come with an undersized ID. Allows you room to re-bore the ID without damaging the clamp screws. Pilot bore can be opened to the nominal ID reflected in the part number.
Pilot Bore
1/2 in
Max Bore
1 in
OD
2 in
Length
3 in
Style
Two-Piece Clamp
Material
Steel, ASTM A108
Finish
Black Oxide
Clamp Screw
Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 1/4-28 x 5/8
Approximate Weight
36.40 oz
UPC Code
044861470046
