C732M-40
Series C732M Heavy Duty Shrink Disc 40mm ID x 80mm OD, Steel
Heavy-duty Shrink Disc external clamping device.

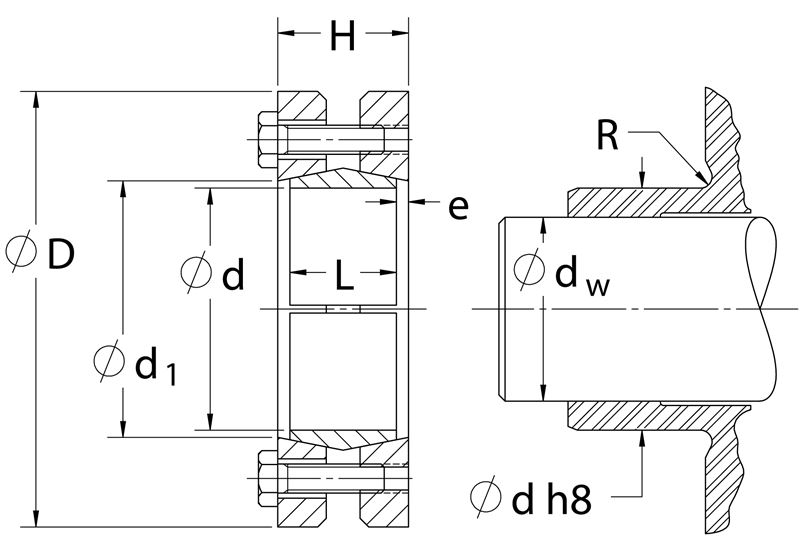

d
1.575 in
D
3.150 in
dw-min
1 in
dw-max
1.290 in
Mt for dw-min
620 ft-lbs
Mt for dw-max
1180 ft-lbs
Fax for dw-min
14888 ft-lbs
Fax for dw-max
21960 ft-lbs
Locking Screws Quantity
4
Locking Screws Size
M8 x 25
Ma-Locking Screws
22 ft-lbs
L
0.984 in
H
1.260 in
e
0.138 in
d1
1.732 in
R
1/16 in
Tw1
0.0015 in
Th2
+ 0 / - 0.0015 in0|-0.0015 in
Weight
1.30 lb
UPC Code
044861059166
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Max. Diametrical Clearance between Shaft and Hub Bore
- 2Hub Outer Diameter Tolerance
