C733M-14

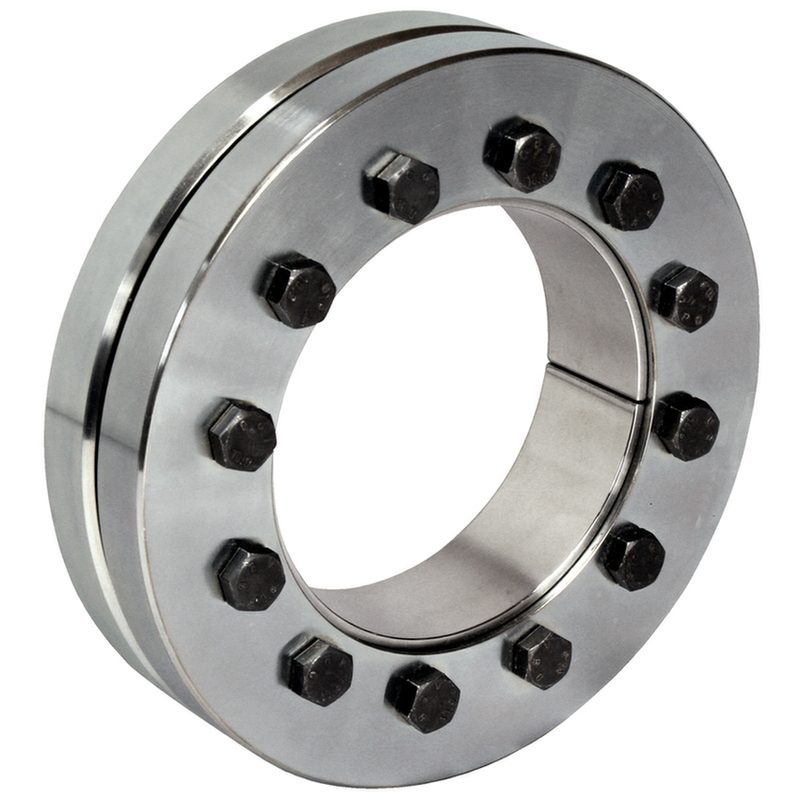

Series C733M Standard Duty Shrink Disc 14mm ID x 38mm OD, Steel
Standard-duty Shrink Disc external clamping device.

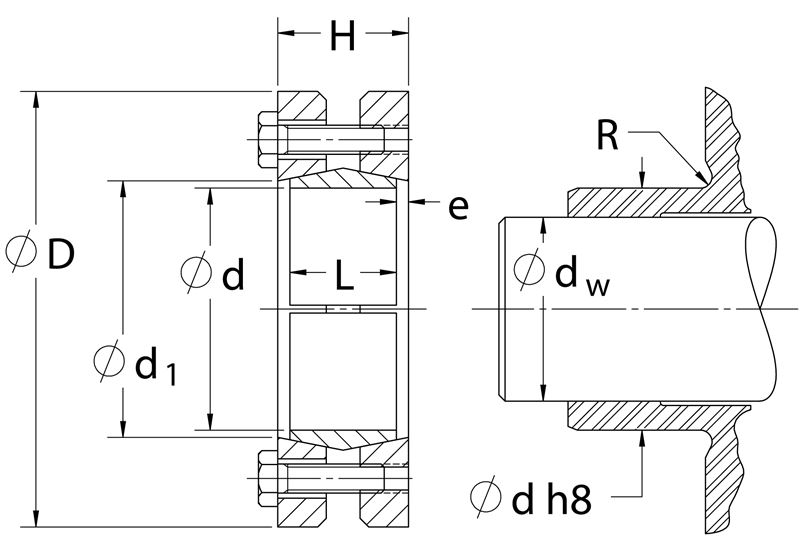

d
0.551 in
D
1.496 in
dw-min
0.375 in
dw-max
0.451 in
Mt for dw-min
22 ft-lbs
Mt for dw-max
55 ft-lbs
Fax for dw-min
1,393 lbs.F
Fax for dw-max
2946 lbs.F
Locking Screws Quantity
3
Locking Screws Size
M5 x 12
Ma-Locking Screws
3 ft-lbs
L
0.394 in
H
0.591 in
e
0.098 in
d1
0.591 in
R
1/32 in
Tw1
0.0010 in
Th2
+ 0 / - 0.0011 in0|-0.0011 in
Weight
0.20 lb
A-Bolt Circle
0.984 in
UPC Code
044861084519
Downloads
Downloads
Downloads
Downloads
REACH Compliance Statement
RoHS 3 Compliance Statement
Disclosure of Conflict Minerals and Materials
California Proposition 65 Warning
Toxic Substances Control Act TSCA
DFARS Compliance Statement
PFAS Compliance Statement
Safety Data Sheet
ISO Certificate
- 1Max. Diametrical Clearance between Shaft and Hub Bore
- 2Hub Outer Diameter Tolerance
