2C-150-S
Two-Piece Clamping Shaft Collar 1-1/2" ID x 2-3/8" OD x 9/16" W, Stainless Steel

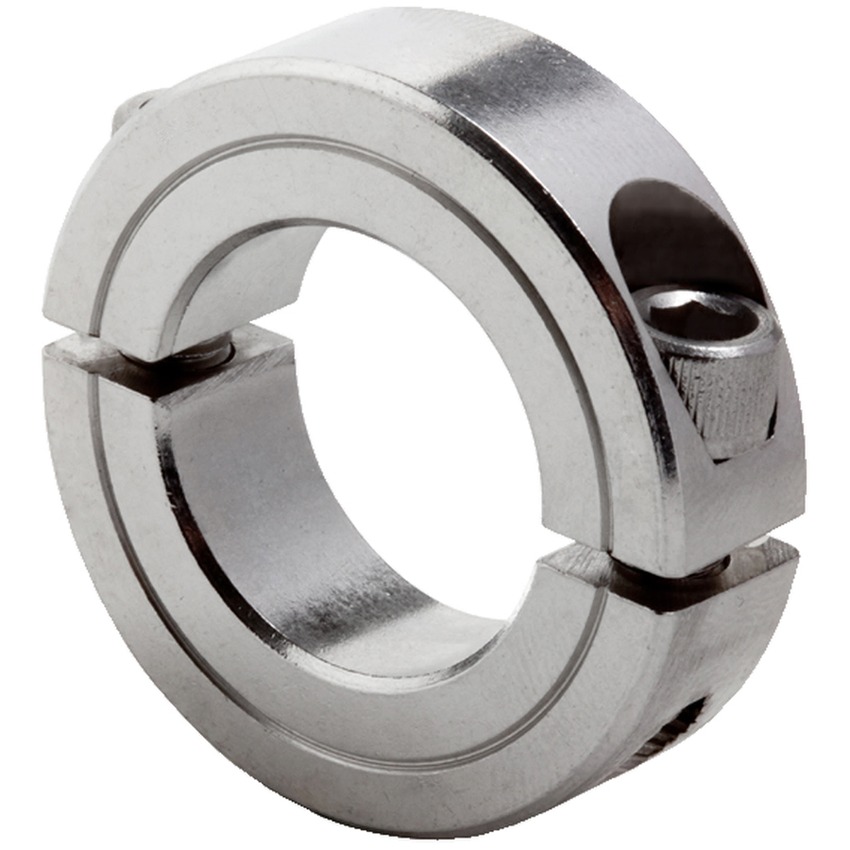

Stainless Steel Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.

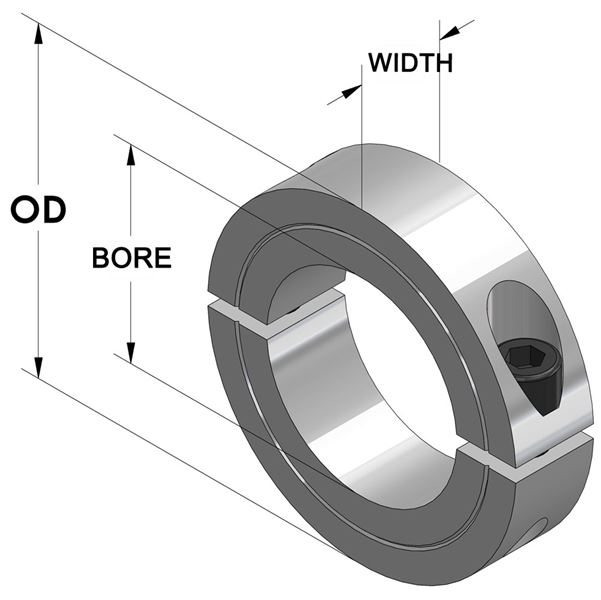

Bore
1 1/2 in
OD
2 3/8 in
Width
9/16 in
Style
Two-Piece Clamp
Material
Stainless Steel, ASTM A582
Finish
Plain
Clamp Screw
Hex Socket Cap Screw, 3A Thread, Stainless Steel, ASTM F837: 1/4-28 x 5/8
Recessed Screw
No
Approximate Weight
6.06 oz
UPC Code
044861229460
